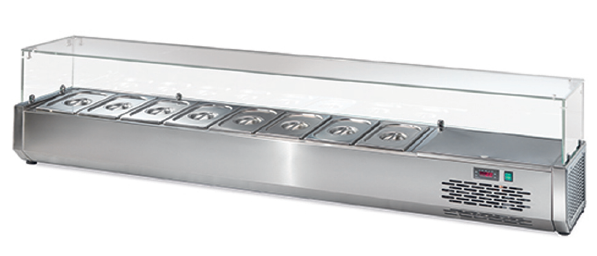

REFRIGERATED DISPLAY SHOWCASE, 0-10C, FLAT GLASS,TO FIT 5 GN (OLD CODE: TCN-VR4140VD)

REFRIGERATED DISPLAY SHOWCASE, 0-10C, FLAT GLASS,TO FIT 5 GN (OLD CODE: TCN-VR4140VD).

Product Description

Model: P-VR4140
Type: Refrigerated Stainless Steel Display
Glass: Straight Tempered Glass or Without Glass
Container Size: 1/4 GN
Refrigerant: R290
Length: 1400 mm

Technical Features

. Technology, Design and Production: Made in Italy
. Construction: Refrigerated display made entirely of stainless steel
. Refrigerant: R290
. GN Compatibility: Suitable for 1/2, 1/4, 1/6 and 1/9 GN containers with a maximum height of 150 mm
. Glass Options: Available with or without glass
. Installation: Freestanding or with stainless steel feet support kit
. Refrigeration: Static refrigeration with built-in condensing unit
. Control: Front electronic control panel with 1 NTC probe
. Defrosting: Off-cycle
. Feet: 4 adjustable feet, adjustable up to 20 mm
. Lengths: Available in various lengths
. Motor Compartment: Can be positioned on the right or left
. Refrigeration Unit: Also available without a built-in unit
. Installation: Easy installation, ready to use

Standard Set-Up

. Standard Packaging: Cardboard

Technical Specifications

. Operating Temperature: +3 to +5 °C
. Climate Class – Safety Standard IEC/EN 60335-2-89: 5
. Climate Class – Test Conditions: 4 (30 °C / 55% RH)
. Refrigerant: R290
. GWP: 3
. Noise Level (LwA): 42 dB(A)
. Refrigeration: Static
. Defrosting: Off-cycle
. Voltage: 230 V 1N
. Frequency: 50 Hz
. Power Supply: 160 W
. Current: 1.73 A
. Material: Stainless Steel AISI 304 (18/10)
. Feet Height: 9–29 mm
. Capacity: 5 × 1/4 GN trays

Straight Glass Model (VD):

. Dimensions (L × W × H): 1400 × 327 × 475/495 mm
. Packaging Dimensions: 1420 × 420 × 400 mm
. Net Weight: 41 kg
. Gross Weight: 46 kg

Without Glass Model (SV):

. Dimensions (L × W × H): 1400 × 327 × 236/256 mm
. Packaging Dimensions: 1420 × 420 × 400 mm
. Net Weight: 25 kg
. Gross Weight: 30 kg
