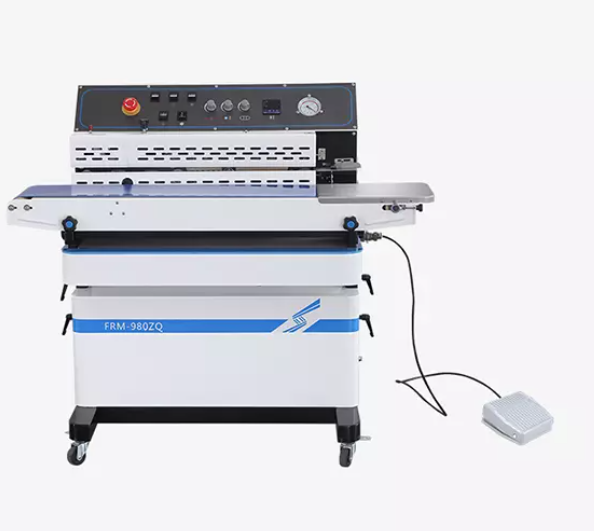

FRM-980ZQ Series Nitrogen Flushing Packaging Machine

1. The FRM-980ZQ series Nitrogen Flushing Packaging Machine can seal any heat-sealable material.

2. Two modes: Exhaust Gas + Sealing, Gas Flushing + Sealing.

3. The machine is equipped with a print wheel that supports both R arrangement and T arrangement of types.

4. For types in R arrangement, the machine can print:

   • Two lines in font size 2 (18 PT), or

   • Three lines in font size 5 (10.5 PT)
     If necessary, a counting device can also be equipped.

Features:

1. Constant temperature control with adjustable settings.

2. Stepless speed regulation.

3. Solid-ink coding with high definition, multiple selectable colors, instant drying during printing, and strong adhesive properties.

Applications:
The FRM-980ZQ series Nitrogen Flushing Packaging Machine is generally used to pack fragile or bulk objects.

Model: FRM-980ZQ

• Voltage (V/Hz): AC 240/50, 110/60

• Motor Power (W): 50

• Suction Pump Power (W): 750

• Sealing Power (W): 300 × 2

• Printing Heating Power (W): 40 × 2

• Sealing Speed (m/min): 0–12

• Sealing Width (mm): 10

• Temperature Range (℃): 0–300

• Printing Type: Solid Ink Roller

• Distance from Sealing Center to Conveyor Table (mm): 10–40

• Distance from Base Plate to Interior Conveyor (mm): 68–85

• Conveyor Table Size (L × W) (mm): 1054 × 203

• Overall Conveyor Loading (kg): ≤10

• External Dimensions (L × W × H) (mm): 1050 × 550 × 900

• Net Weight (kg): 67

• Diameter of Nozzle for Air Flushing Source: 8 mm
