Description:

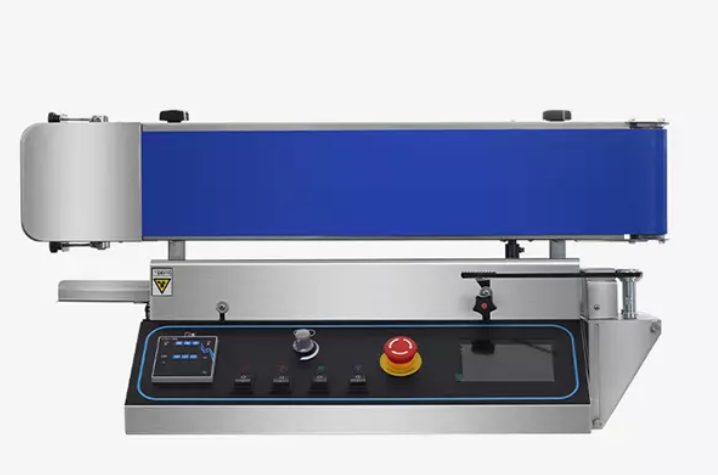

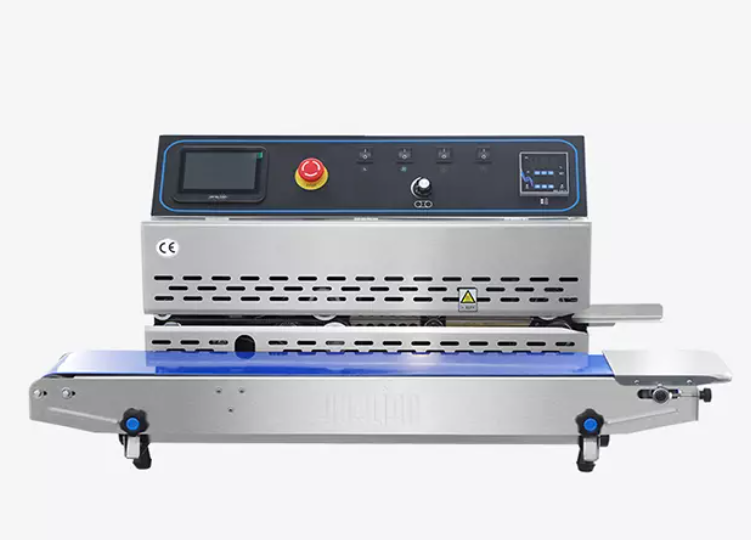

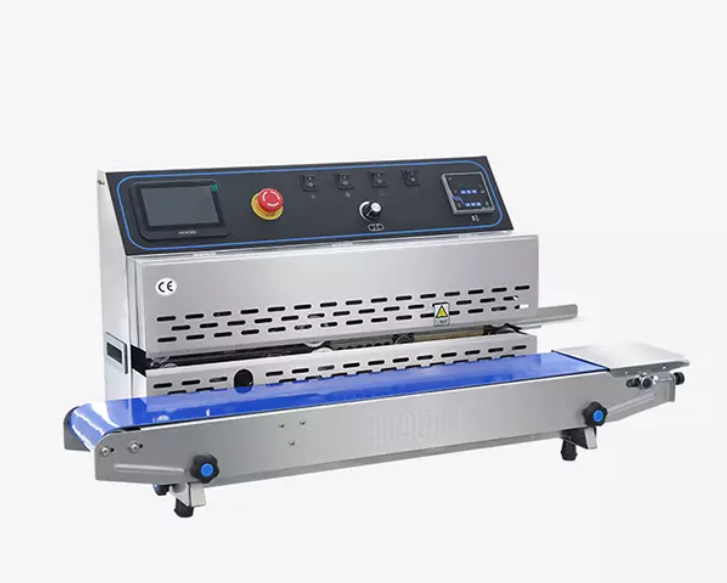

The FRP-810 Smart Ink-Jet Printing Sealer is designed for sealing small packages. Its code-spraying control system runs on the Linux operating system, which is open-source and free to use. This system is highly portable, extremely stable, extensible, and capable of long-term continuous operation. Users can freely adjust the size and length of the printed font according to their needs. The machine also includes a sealing counting function and supports rich, customizable printing content.

Features:

• Dual Functionality: Combines printing and sealing in one machine.

• Advanced Operating System: Linux touch screen OS with open-source access, powered by a quad-core high-performance processor running at 1.5 GHz for fast response and smooth operation.

• User-Friendly Interface: Flat, visually appealing interface with interactive scroll tips; 5-inch IPS HD capacitive touch screen with 800 × 480 resolution and nearly 180° viewing angle.

• Intelligent Input Methods: Supports Chinese and English associative input, handwriting, five-stroke, Tsang-jei, and more. Input method automatically switches based on system language.

• Graphic Support: Directly input images in bmp, jpg, png, etc. Any graphic element can be dragged and resized without tedious computer formatting.

• Custom Font Management: Users can import and manage their favorite fonts.

• Versatile Printing Content: Prints text, dates, marks, logos, QR codes, barcodes, and more. One-click language switching supports over 20 languages, including custom languages.

• Connectivity and Updates: Supports Wi-Fi networking, software updates online, and USB flash disk updates for continuous maintenance and optimization.

• Convenient Cartridge Design: Cartridges can be inserted or removed while charged without interrupting operation.

Model: FRP-810I

• Seal Width: 10 mm

• Voltage (V/Hz): AC 240/50

• Sealing Power: 300 × 2 W

• Motor Power: 50 / 100 W

• Temperature Range: 0–300℃ (adjustable)

• Sealing Speed (m/min): 0–16 (max 0–24)

• Distance from Sealing Center to Conveyor: 10–40 mm

• Printing Type: Hot foaming inkjet

• Distance from Base Plate to Interior Conveyor: 60–120 mm

• Conveyor Size (L × W): 954 × 153 mm

• Max Distance from Sealing Center to Bag Mouth: 21 mm

• Consumables Replacement Method: Lock / Open

• Overall Conveyor Load: N/A

• External Dimensions (L × W × H): 954 × 390 × 465 mm

• Net Weight: 28.5 kg
