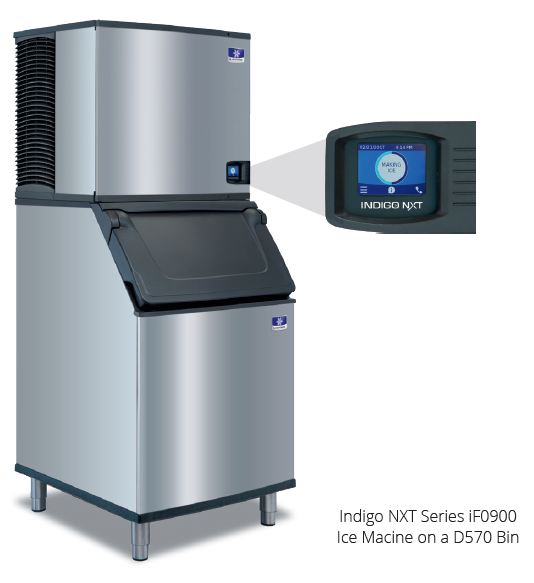

386Kg/24 Hr, Indigo NXT Dice Ice Cube Machine.

MAN-IDT0900A

Designed for operators who understand that ice is critical to their business, the Indigo®NXT Series ice machine features preventative diagnostics that continually monitor the system for reliable ice production. Enhancements in cleanability and programmability make your ice machine easier to own and less expensive to operate.

• easyTouch® Display – A new icon-based touchscreen removes the guesswork from owning and operating your ice machine.

• Programmable Ice Production – Easily schedule your ice machine to be off at certain times of the day to save money with fluctuating electrical rates. You can also program it by daily ice production volume.

• Easy-to-Clean Foodzone – The hinged front door swings out for full access. Removable water trough, distribution tube, curtain, and sensing probes allow for fast and efficient cleaning. Select components are made with AlphaSan® antimicrobial protection.

• Intelligent Diagnostics – Provides 24-hour preventative maintenance and diagnostic feedback for trouble-free operation.

• Acoustical Ice Sensing Probe – Unique patented technology ensures reliable operation even in challenging water conditions and environments.

• DuraTech™ Exterior – Offers superior corrosion resistance beyond stainless steel. An innovative clear-coat resists fingerprints and dirt, making it easier to keep clean.

• Available LuminIce II Growth Inhibitor – Controls the growth of bacteria and yeast in the food zone to keep the machine cleaner for longer. A new indicator on the display shows operational status.

• Active Sense – Ensures consistent ice harvest in all environmental conditions. This software and/or hardware solution works in conjunction with the acoustical ice sensing probe, improving reliability and performance.

Specifications

• BTU per Hour:

  • Average: 12,700

  • Peak: 14,800

• Refrigerant: R410A (CFC-free, 48% lower Global Warming Potential)

Ice Machine Electrical Specifications

• Voltage: 230 V / 50 Hz / 1Ø


• Minimum Circuit Ampacity:

  • Air-cooled: 9.5 A, 1Ø

  • Water-cooled: 8.8 A, 1Ø

• Maximum Fuse Size:

  • Air-cooled: 15 A, 1Ø

  • Water-cooled: 15 A, 1Ø

Dimensions & Storage Capacity

• Height: 67.31 cm

• Width: 76.20 cm

• Depth: 62.23 cm

Model IDT0900A – Regular

• Production:  386kg

• Energy Consumption: 4-85 kWh

• Water Usage: 19 gal (71.9 L)

• Notes: N/A

• Water Temperature Range:  (4.4˚ to 43.3˚C)
• Ice Cube Type: Dice
  Cube Dimensions:  (2.22 x 2.22 x 2.22 cm)
