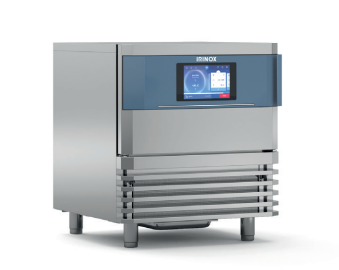

BLAST CHILLER / SHOCK FREEZER , LEFT OPENING HINGED DOOR.

MF-NEXTS

Standard Construction Details

• Left-hand door opening with concealed, patented hinges.

• Full-height door with double-beveled side edges.

• Door opening angle up to 150°.

• Magnetic, soft, and slow door closing.

• 5-chamber gasket, designed for both high and low temperatures.

• Core probe with 3 detection points, quick screw connector, anti-corrosion, watertight (IP67).

• Magnetic flat surface (400 × 150 mm) for securing the core probe.

• Tilting grill for easy removal and cleaning of the condenser filter.

• Ergonomic, robust steel handle.

• Interior and exterior in AISI 304 stainless steel.

• Built-in air condensation system.

• Refrigerant gas: R290.

• MultiRack® patented adjustable tray holder, optimizing air circulation inside the blast chiller.

• Includes 5 pairs of guides.

• 4 adjustable feet (height 80–115 mm).

• Wi-Fi module included for HACCP report download.

Yield

Modes: Standard / Eco Silent / Turbo

• Fast cooling (+90 °C → +3 °C) within 90 minutes: 25 kg (up to +30%)

• Quick freezing (+90 °C → –18 °C) within 240 minutes: 25 kg (up to +30%)

Tests performed in compliance with the Irinox procedure using 5 cm thick beef.

Capacity

• 8 trays – GN 1/1 or 600 × 400 mm (H = 20 mm)

• 5 trays – GN 1/1 or 600 × 400 mm (H = 40 mm)

• 4 trays – GN 1/1 or 600 × 400 mm (H = 65 mm)

Height

• Standard feet: 870–905 mm (adjustable 80–115 mm)

• Lowered feet option: 850–870 mm (adjustable 60–80 mm)

• Castors option: 888 mm (155 mm)

Energy Consumption (according to EN 17032)

• Model: MF NEXT S (230V-1N+PE 50Hz)

• Type of product: Blast chiller / Blast freezer

Performance Modes: Standard / Eco Silent / Turbo

• Yield per cycle: 15 kg / 15 kg / 25 kg

• Energy consumption – Blast chilling cycle (STRONG, +3 °C): 0.07* / 0.068 / 0.081 kWh/kg

• Energy consumption – Blast freezing cycle (STRONG, –18 °C): 0.198* / 0.192 / 0.24 kWh/kg

• Blast chilling cycle duration (from +65 °C to +10 °C): 78* / 78 / 80 min

• Blast freezing cycle duration (from +65 °C to –18 °C): 251* / 251 / 267 min

Values marked with () are reference values for the Standard mode.
