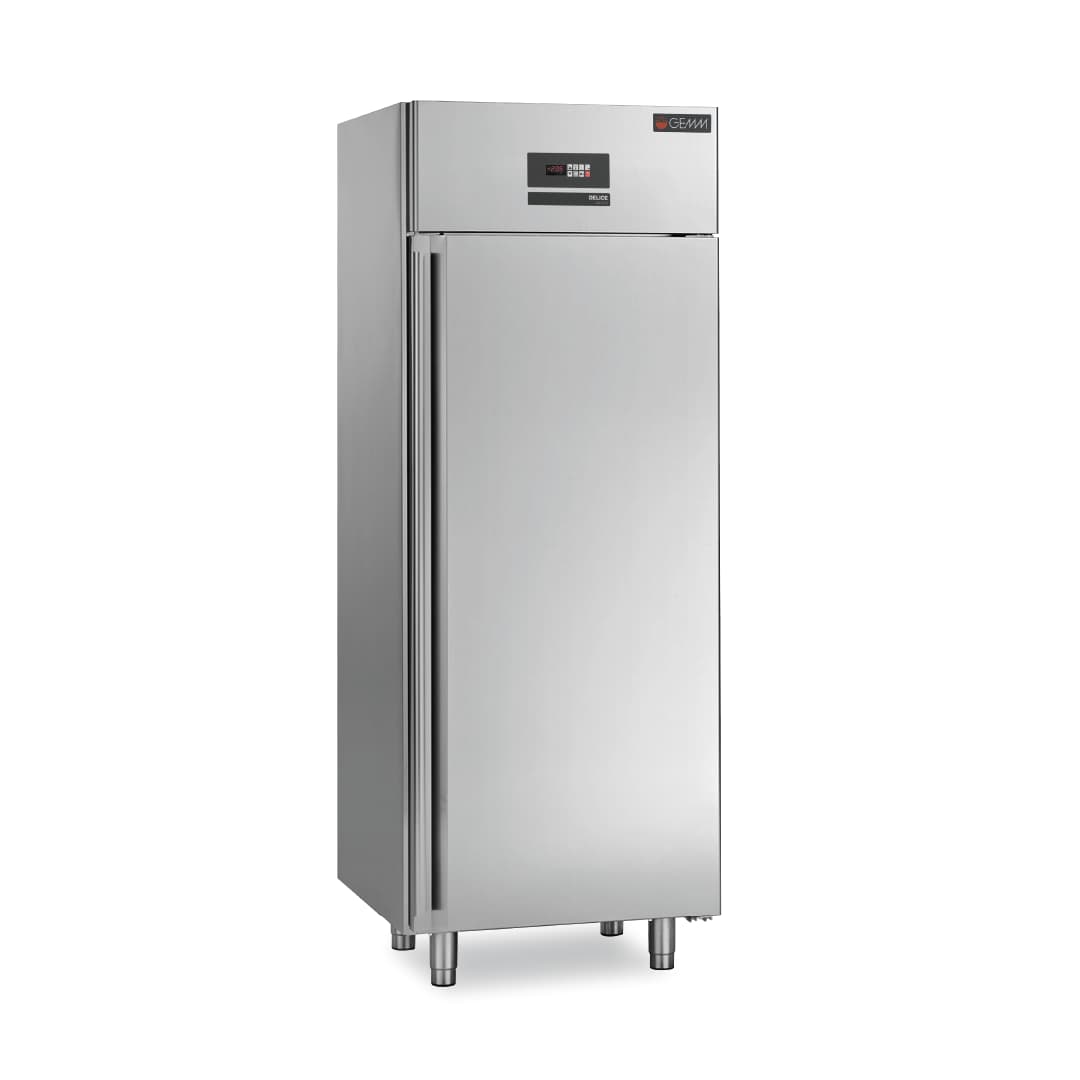

Ice Cream freezer Cabinet with 1 selfclosing door with 4 castors

GELATO STORAGE CABINETS

Model: ARG/30
Code: 45009900

DELICE

Description:
Freezer cabinet for ice cream with 1 door, designed to store 54 x 5 L ice cream containers (container size: 360 x 160 x 120 mm). Equipped with a monobloc condensing unit. Also available prearranged for remote condensing units with a valve system.

Features:

• Construction: Stainless steel

• Function: Gelato hardening cycle

• Internal capacity: 54 x 5 L ice cream containers (360 x 160 x 120 mm)

• Technical compartment position: Top-mounted

• Refrigeration type: Ventilated cooling system

• Installation: Prearranged to be installed on a plinth

• Defrosting system: Automatic defrosting with hot gas

• Condensation water evaporation: Automatic

• Optional equipment: Prearranged for remote system (R452A gas valve)

• Supplied with: 5 shelves (560 x 740 mm)

Technical Data

Model ARG/30 has 1 door. The net capacity is 584 litres and the gross capacity is 750 litres. External dimensions are 79 x 93 x 219 cm. The insulation thickness is 70 mm. Tray pitch is 24 mm, with 53 rack positions. It does not have a standard lock or standard light. The temperature range is from -22°C to -10°C. The condensing unit is a plug-in type and uses R290 refrigerant gas. It does not have ventilation or humidity control.

The maximum absorbed power is 810 W (evaporation at -10°C, condensation at +45°C). The cooling power is 933 W (evaporation at -23.3°C, condensation at +54.4°C). Input voltage is 1x230V ~ 50Hz. Energy consumption is 6.3 kWh per 24 hours, and 2308 kWh per year. The energy efficiency index is 53. The climate class is 5.

Packaging dimensions are 84 x 97 x 225 cm. Gross volume is 1.83 m³. Net weight is 202 kg, and gross weight is 240 kg.

Features of Cooling System and Components

Container capacity for carapina bowls is 24 bowls (diameter 20 cm, height 25 cm). Container capacity for ice cream containers is 54 containers of 5 litres each (dimensions 36 x 16 x 12h cm).

Origin: Italy
