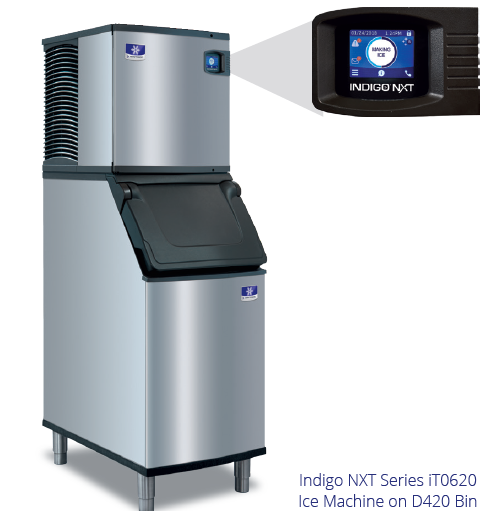

Indigo NXT Series Half Cube Ice Machine Head - 261 Kg, Air Cooled.

MAN-IYT0620A

Designed for operators who know that ice is critical to their business, the Indigo NXT Series ice machine features preventative diagnostics that continually monitor the system for reliable ice production. Improvements in cleanability and programmability make your ice machine easier to own and less expensive to operate.

• New Levels of Performance – Demonstrates an average of 31% lower energy consumption, 16% reduction in potable water usage, and 32% reduction in condenser water usage, translating into a lower total cost of ownership over the life of the machine.

• easyTouch® Display – A new icon-based touchscreen removes the guesswork from owning and operating your ice machine.

• Programmable Ice Production – Easily schedule the machine to be off at certain times of the day to save money with fluctuating electrical rates. Production can also be programmed by daily ice output.

• Easy-to-Clean Foodzone – The hinged front door swings out for easy access. Removable water trough, distribution tube, curtain, water probe, and water pump allow fast and efficient cleaning. Selected components are made with AlphaSan® antimicrobial protection.

• Intelligent Diagnostics – Provides 24-hour preventative maintenance and diagnostic feedback for trouble-free operation.

• Acoustical Ice Sensing Probe – Unique patented technology ensures reliable operation in challenging water conditions and environments.

• DuraTech® Exterior – Offers superior corrosion resistance beyond stainless steel. An innovative clear-coat resists fingerprints and dirt, making it easier to keep clean.

• Available LuminIce® II Growth Inhibitor – Controls the growth of bacteria and yeast within the food zone, keeping the machine cleaner longer. A display indicator shows the operational status in real time.

Ice Machine Electrical Specifications

• Voltage: 220 240V/50Hz 1Ph.


• Minimum Circuit Ampacity:

  • Air-cooled: 12.2 A (115 V), 5.9 A (208–230 V)

  • Water-cooled: 11.6 A (115 V), 5.6 A (208–230 V)

• Maximum Fuse Size:

  • Air-cooled: 20 A (115 V), 15 A (208–230 V)

  • Water-cooled: 20 A (115 V), 15 A (208–230 V)

Specifications

• BTU per Hour:

  • Average: 5,400

  • Peak: 6,300

• Refrigerant: R410A (CFC-free, 48% lower Global Warming Potential)

• Operating Limits:

  • Ambient Temperature Range: 40˚ to 110˚F (4.4˚ to 43.3˚C)

  • Water Temperature Range: 40˚ to 90˚F (4.4˚ to 32.2˚C)

• Water Pressure for Ice Maker:

  • Minimum: 20 psi (137.9 kPa)

  • Maximum: 80 psi (551.1 kPa)

Dimensions & Storage Capacity

• Height: 54.61 cm

• Width: 62.23 cm

• Depth: 55.88 cm

• Bin Storage: 383 Ibs

Ice Cube Type: Half Dice
Cube Dimensions:  .95 x 2.86 x 2.22 cm

Temperature Range:  (4.4˚ to 43.3˚C)

Power: 4.87 kWh
